First impressions matter. In modern architectural design, the entryway has evolved from a simple functional necessity into the home's primary "statement piece." Enter the off-center pivot door.

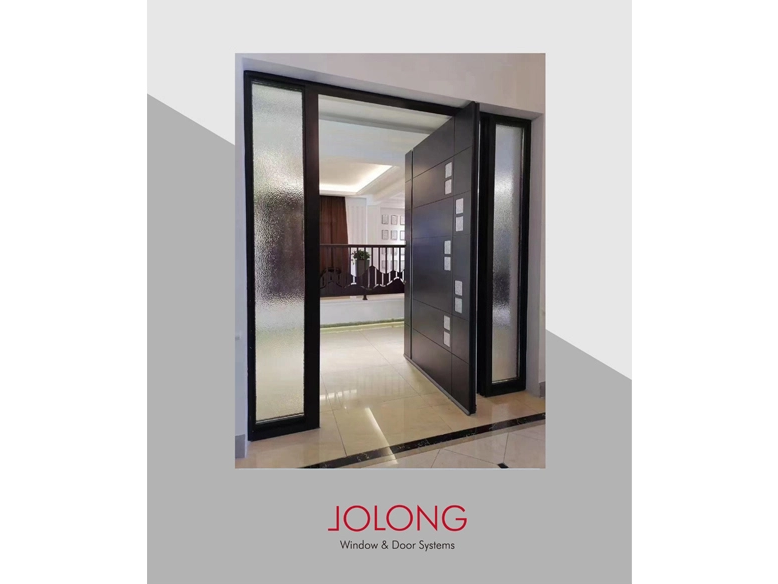

Unlike a traditional door that hangs on side hinges, or a standard center pivot that rotates perfectly in the middle, an off-axis pivot door utilizes a spindle point set slightly away from the side jamb (often 4 to 8 inches). When opened, it doesn't just swing; it appears to float, rotating on a vertical axis that defies gravity.
But does this luxury aesthetic justify the investment? In this guide, we're stripping back the gloss to look at the engineering. We will analyze the lifestyle fit, the weather-proofing capabilities, and whether high-performance hardware, like the JOLONG 95 Series off-center pivot doors, can solve the common headaches associated with pivot entryways.
Architects and high-end builders favor modern entryway design that utilizes offset pivots for several key technical and aesthetic reasons.
Standard hinges have a weight limit. If you overload a side hinge, the door drags and the frame warps. An off-center pivot system transfers the weight vertically down into the floor. This allows for massive, heavy doors—sometimes clad in steel, hardwood, or marble—to operate with the push of a finger. The JOLONG 95 Series, for example, is engineered to handle these extreme weights effortlessly, preventing the "door sag" common in traditional oversized doors.
There is a distinct visual difference when a door rotates around an offset axis. A portion of the door swings inward while the majority swings outward (or vice versa). This "tail" movement creates a sophisticated, sculptural feel that traditional doors simply cannot replicate.
An off-axis pivot door can actually save space compared to a center pivot. A center pivot reduces the walkthrough width by 50% effectively. By shifting the pivot point to the side (off-center), you maximize the walkthrough opening while still maintaining that stunning rotational look.
We believe in a transparent, People-First approach to content. Before you install, you must consider the challenges.
The Cost Factor: These systems require specialized offset pivot hinges, closer bodies, and professional installation. It is a significantly higher investment than a standard hung door.
Installation Precision: This is not a DIY project. The floorbox must be laser-level. If your flooring is uneven, an off-center pivot will not return to the zero-degree (closed) position correctly.
The Draft Myth: Historically, pivot doors had gaps at the top and bottom to allow for the swing, making them nightmares for air conditioning and waterproofing. However, modern engineering has solved this.
Expert Insight: High-end systems like the JOLONG 95 Series mitigate drafts using specialized perimeter brush seals and drop-down technologies that engage only when the door is closed, ensuring the insulation is tight without hindering the door's movement.
Let's look at the mechanics. Why choose an off-center pivot over the alternatives?
| Feature | Side-Hinged Door | Center Pivot Door | Off-Center (Off-Axis) Pivot |
| Weight Capacity | Low to Medium | High | Very High |
| Walkthrough Width | Max (approx 95%) | Limited (50%) | Optimized (approx 80-85%) |
| Installation | Standard | Complex | Precision Required |
| Visual Impact | Standard | Modern | Architectural Luxury |
| Sealing | Easy | Difficult | Requires Advanced Hardware |
One of the most common user concerns is water penetration. A standard pivot door lacks a "rebate" (the lip the door closes against). To combat this, look for off-axis pivot door systems that are wind-load tested. The hardware must be able to hold the door firm against high wind pressure so the seals remain compressed. This is where heavy-duty hydraulic pivots outperform simple spring-loaded options.
Safety is paramount, especially in homes with children. An off-center pivot creates a "gap" at the pivot side when the door is open, which can be a pinch hazard.
The Fix: Modern pivot doors use "rounding" profiles or dedicated finger guard geometry at the jamb. Additionally, the JOLONG 95 Series allows for controlled closing speeds, preventing the door from slamming shut on fingers.
To keep that luxury "glide" feeling for decades, pivot door maintenance is required.
Floorbox Management: The bottom pivot is where the weight lives. It sits in a floor box that can collect dust and debris. Vacuum this mechanism every 3–6 months to prevent grinding.
Top Pivot Lubrication: While sealed bearings generally require little maintenance, a small amount of silicone-based lubricant on the top pivot point can prevent squeaking in humid climates.
Check Alignment: Homes settle. If you notice your door isn't latching perfectly, adjust the pivot. Most high-end offset pivot hinges allow for 3D adjustability (left/right, up/down, closing speed) without removing the door.
If you are looking for the gold standard in off-center application, the JOLONG 95 Series is the standout choice for commercial and luxury residential builds.
Heavy Load Mastery: Engineered specifically for the "off-axis" movement, this system supports heavier glass and frame weights than standard market competitors, giving you the freedom to design bigger.
Glass-First Integration: The 95 Series is designed with minimal hardware visibility. The mechanics are concealed to ensure the eye focuses on the glass and the view, not the hinge.
Superior Sealing: Addressing the "drafty pivot" concern head-on, the JOLONG 95 Series integrates seamlessly with modern drop-seal technologies, ensuring high water resistance and thermal performance.
Is an off-center pivot door worth it?
If you are looking for a standard door that disappears into the background, a pivot might be overkill. However, if your goal is modern entryway design that creates a moment of awe every time you arrive home—and you have the budget for precision hardware—the off-axis pivot is unmatched.
It offers the high-capacity benefits of a center pivot without the loss of walkthrough space, combining physics and art into one seamless motion.
Ready to elevate your entryway?
Explore the technical specifications of the JOLONG 95 Series Off-Axis Pivot Door to see how we handle weight and weather-sealing, or contact our specialists for a consultation on your custom build.
